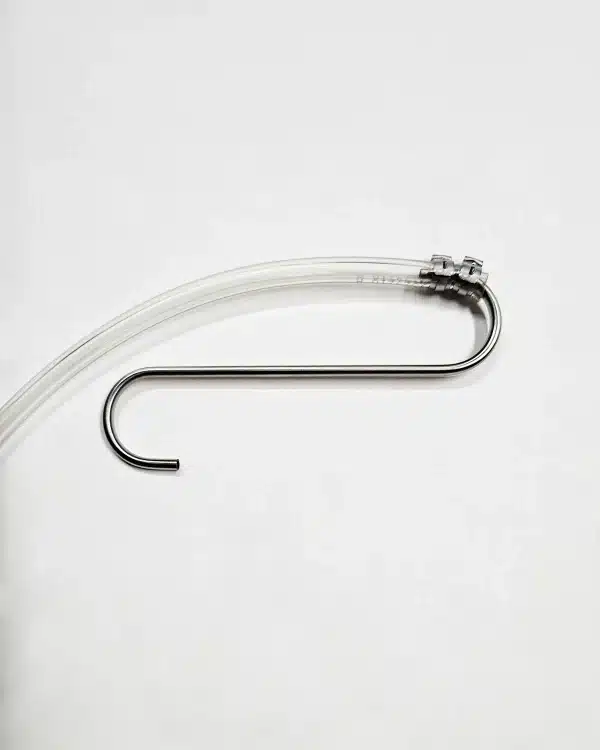

Aerosol Throttle Body ‘S’ Delivery Tool (TN75490)

FOR GASOLINE INDUCTION:

① Remove the intake fresh air boot and insert TN75490 S tool into the boot with the tip facing the throttle body. Re-attach the boot securing the S tool firmly in place.

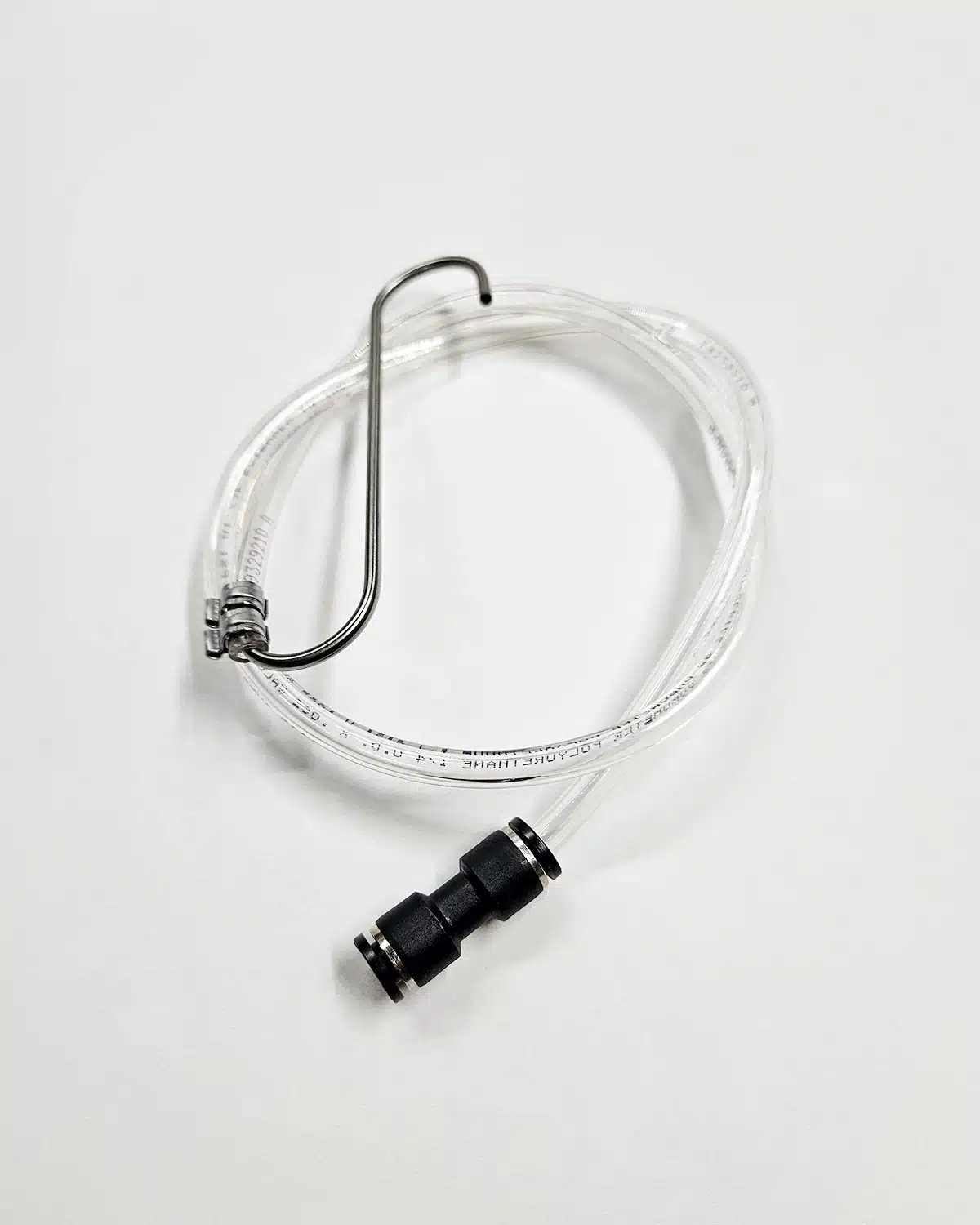

② Attach the TN75490 tool to the aerosol can by pushing the push-to-lock union onto the 1/4″ OD dispenser tip.

③ Start the engine with the vehicle in Park or Neutral and adjust engine speed to 1200-2000 RPM. Spray the product in short bursts so as to not stall the engine.

④ Continue to run the engine for (2) minutes after the can is empty.

⑤ Remove tool from can by pulling back on the union’s latching collar.

WYNN’S DE-CARBON FOAM:

① Requires use of 1/4″ OD dispensing. Use throttle stick or AffinityEG ADTEH Extension Hose assembly to control engine RPM.

② For best results use Wynn’s Job Aid for recommended service procedure.

FOR GAS OR DIESEL ENGINE TURBO CLEANER:

See attached Wynn’s job aid ZW21601-REV.03-Job-Aid_Turbo-Cleaner.pdf (wynnsusa.com)
