Fuel Induction Nozzles (Vacuum)

Name: Fuel Induction Nozzles (Vacuum)
SKU: UVF
Availability: InStock

Price range: $16.84 through $123.50

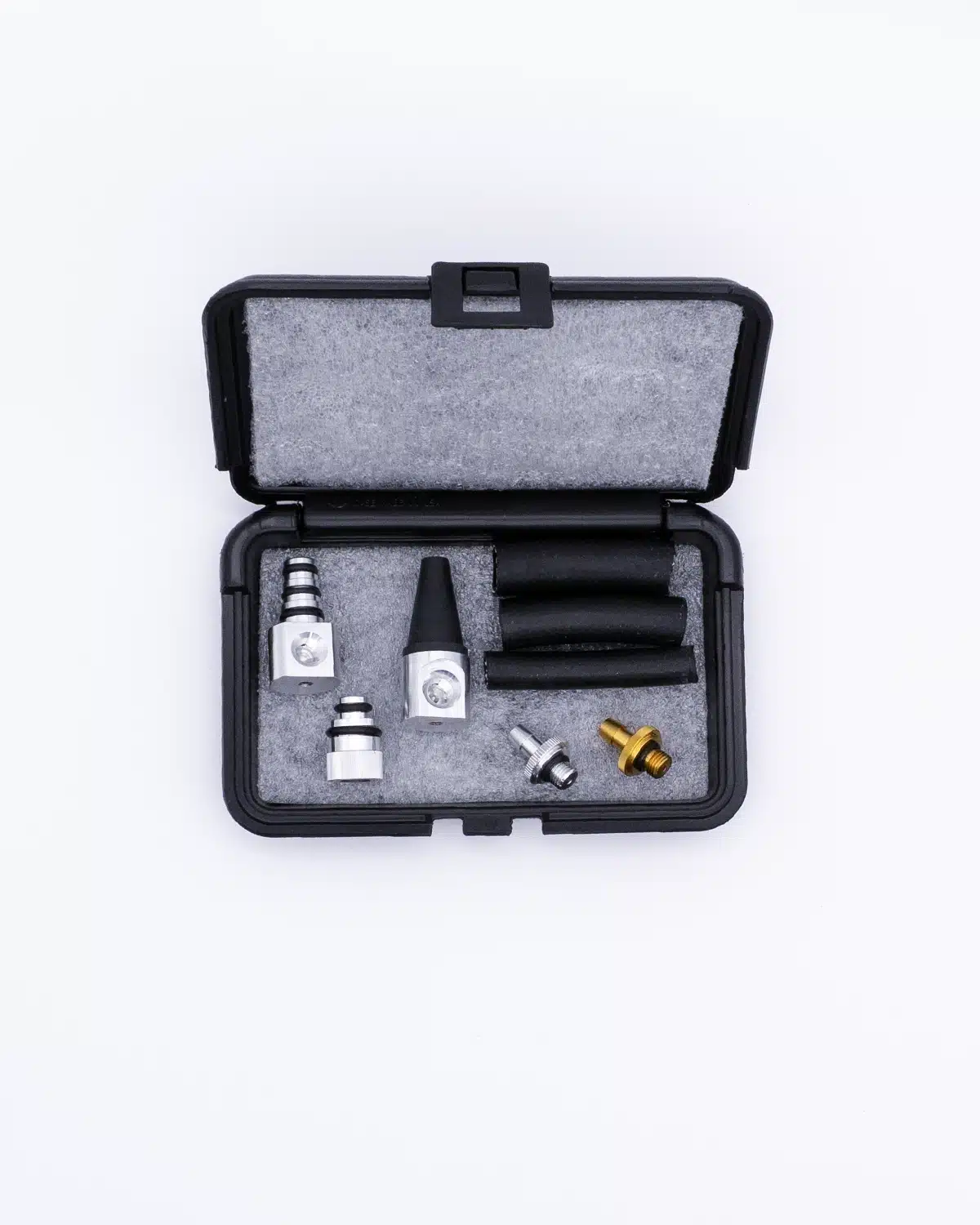

The UVTK000 includes optional vacuum tip connections for the FVT16, providing a universal solution for vacuum induction services, all packaged in a small case.

The kit includes:

(3) vacuum connection hoses
UVFHA00 Hyundai/Kia/VW/Audi MAP Sensor Port Tip
UVFF000 Ford 3-Step Vacuum Port Induction Tip
UVFC000 Universal Vacuum Cone Tip
UVFS000 Universal Low-Flow Aluminum Vacuum Orifice
UVFS028 Universal High-Flow Gold Vacuum Orifice

Nozzle Tips for:
Fuel Service Tool (FVT16)
Nozzles that come with the FVT16 are UVFS025 and UVFH000 (also sold separately).

Vacuum Tips

Clear

Apple Pay and Google Pay require an account login before checkout.
Please log in or create an account first.

SKU: UVF Category: Fuel Tags: _Adapters, _Fuel Nozzles, Fuel Vacuum Tool Adapters

Fuel Tool (FVT16)

Buy Now

RECOMMENDED CLEANERS

BY WYNN’S

Wynn’s® Clean-SweepTM Intake/Induction Cleaner (ZW69116)

Find a Wynn's Distributor

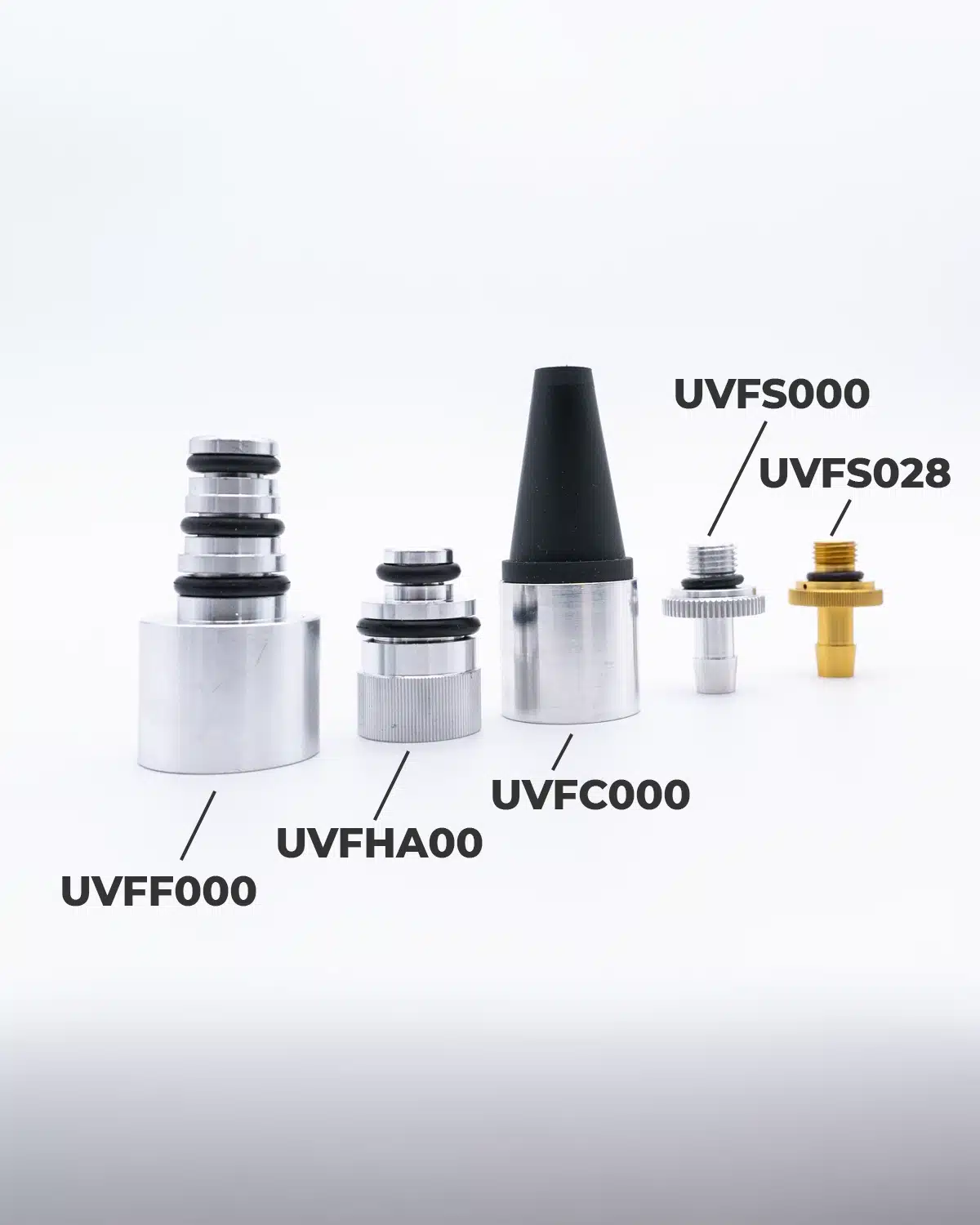

Features of Fuel Induction Nozzles (Vacuum):

Items included in this kit:

UVFS028: Universal High-Flow Gold Vacuum orifice (not recommended for 4-cylinder or smaller engines)
UVFS000: Universal Low-Flow Aluminum Vacuum orifice (recommended for 4-cylinder or smaller engines)
UVFF000: 3-step tip for use with Ford 4-cylinder MAP sensor & PVC induction ports, and the 6-cylinder MAP sensor port
UVFHA00: Hyundai/Kia/VW/Audi MAP sensor port vacuum tip
UVFC000: Universal Vacuum Cone tip designed to fit a range of induction port sizes where one of the specific sensor tips will not fit.
Hoses: 1/4″, 3/8″ and 1/2″ hoses to connect between the UVFH000 and appropriate induction hose vacuum barb
Case: Small, plastic case for storage of optional tips

Extras not included in the kit:

ORKF000: O-Ring Replacement Kit

Additional information

Weight	N/A
Vacuum Tips	UVFC000, UVFF000, UVFHA00, UVFS000, UVFS028, UVTK000 Full Kit

Service Instructions

FOR FUEL INDUCTION:

① Remove the tool fill cap and fill tool with induction cleaner.

② Ensure that the process valve is turned to the closed position.

③ Locate a centralized vacuum source on the engine as close to the throttle body as possible to provide even flow of induction cleaner to all runners.

④ Attach the tool nozzle to the vacuum port. This may require a short section of tubing to connect to the vacuum port. Keep short as possible.

⑤ Start the engine and allow it to reach operating temperature.

⑥ Raise the engine speed to 1200-1500 RPM for the duration of the service.

⑦ Open the process valve on the tool as far as possible without stalling the engine. If stalling does occur, immediately close the process valve and let engine run until cleared.

⑧ Snap the throttle every minute to ensure there is no puddling of cleaner. Ensure engine does not stall during service.

⑨ After the fuel tool is completely empty, let the engine run an additional 10 minutes then drive briskly to clear induction system.

⑩ Clear any engine codes.
