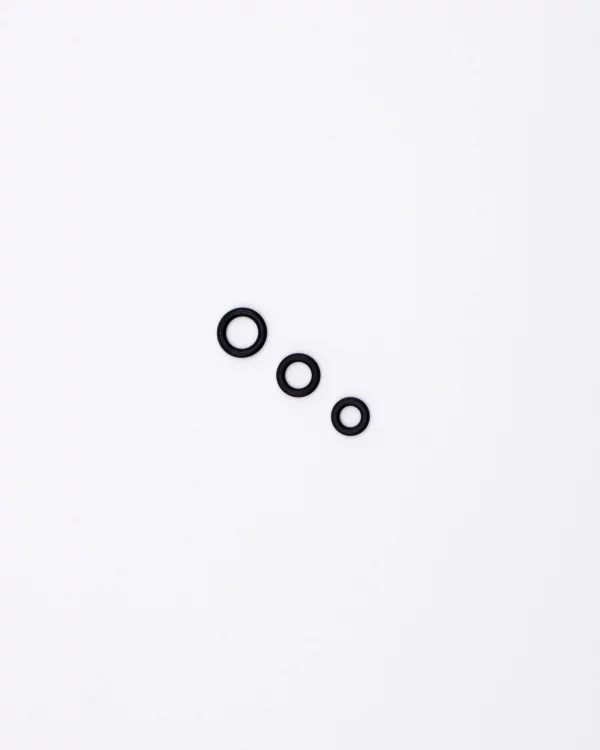

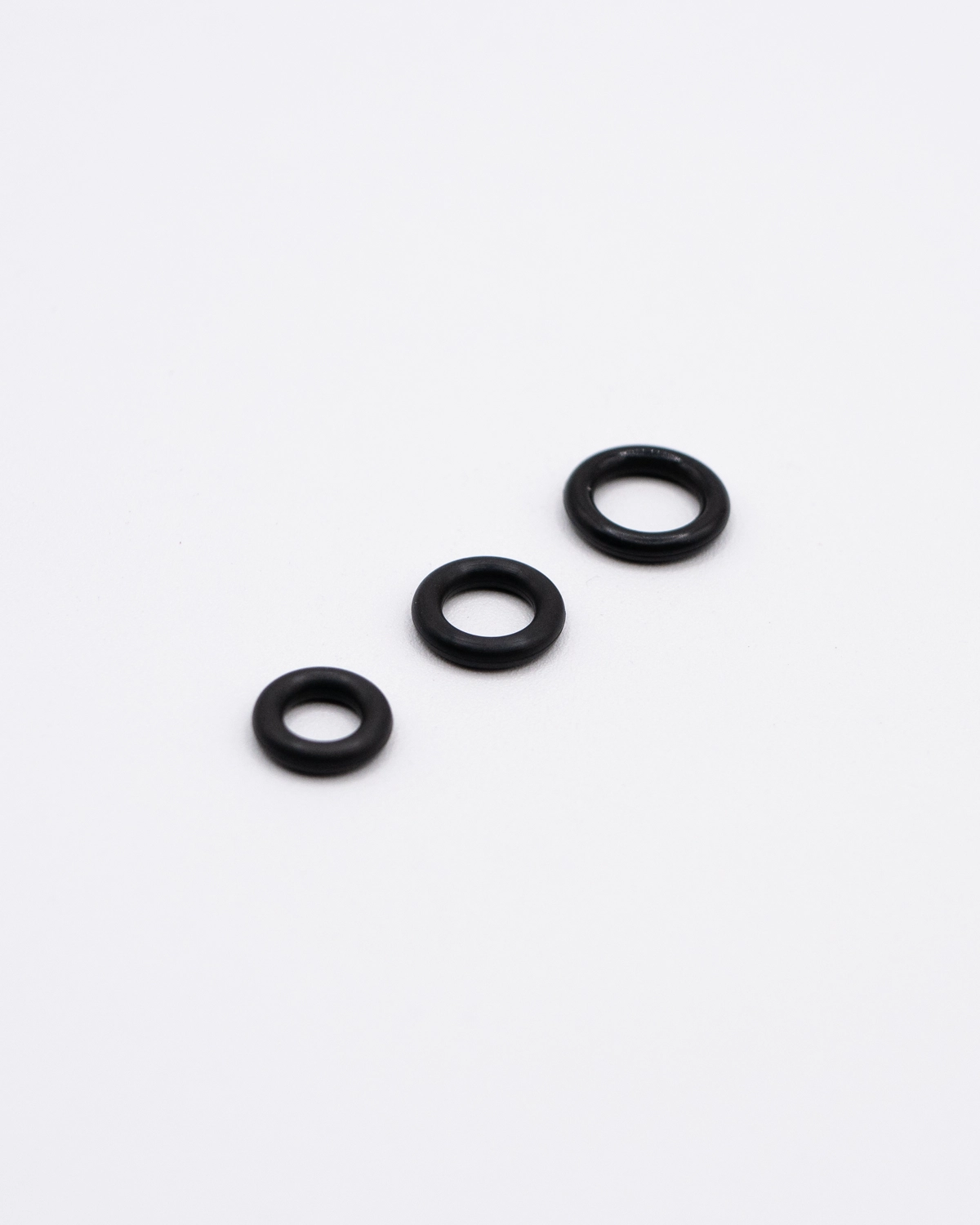

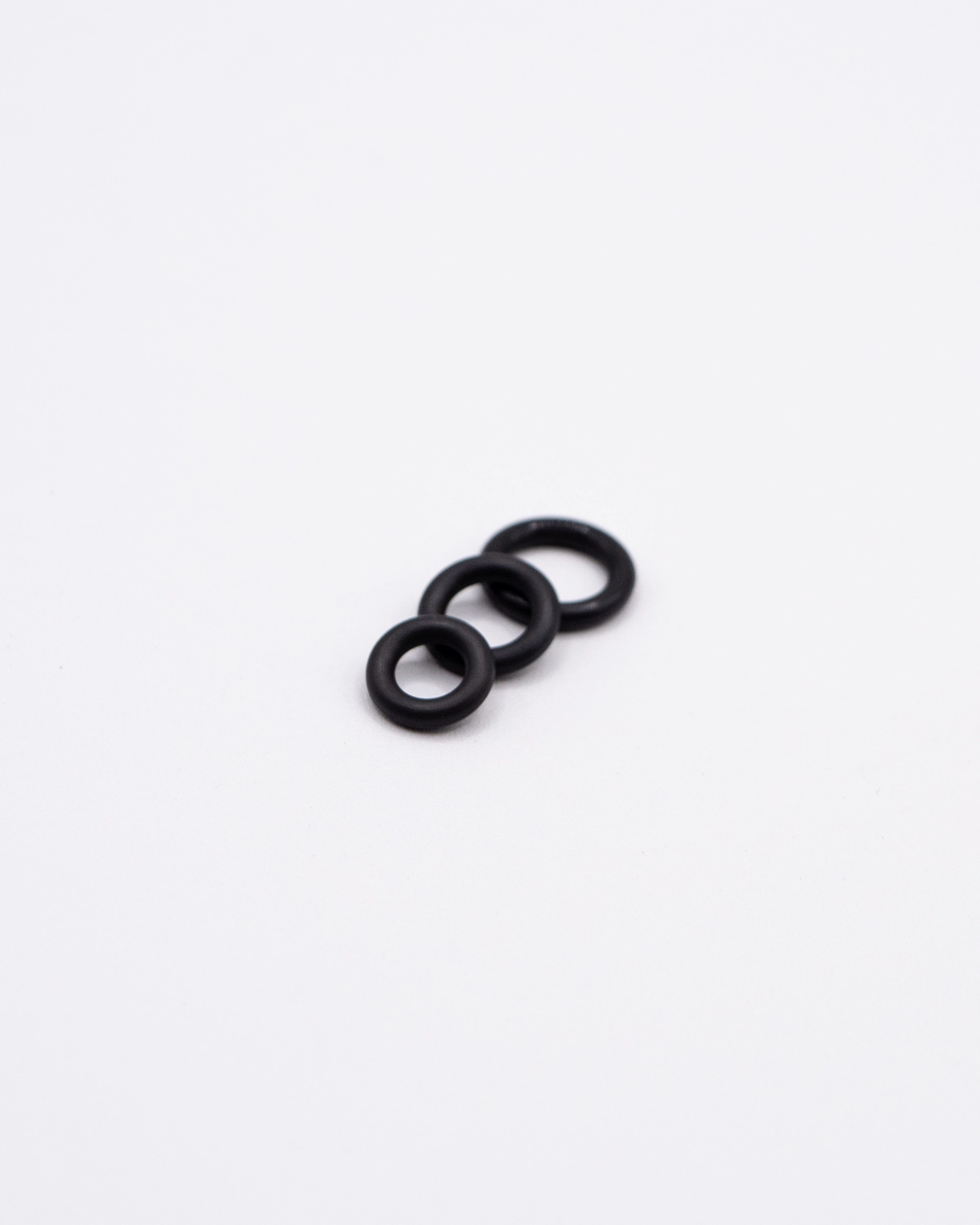

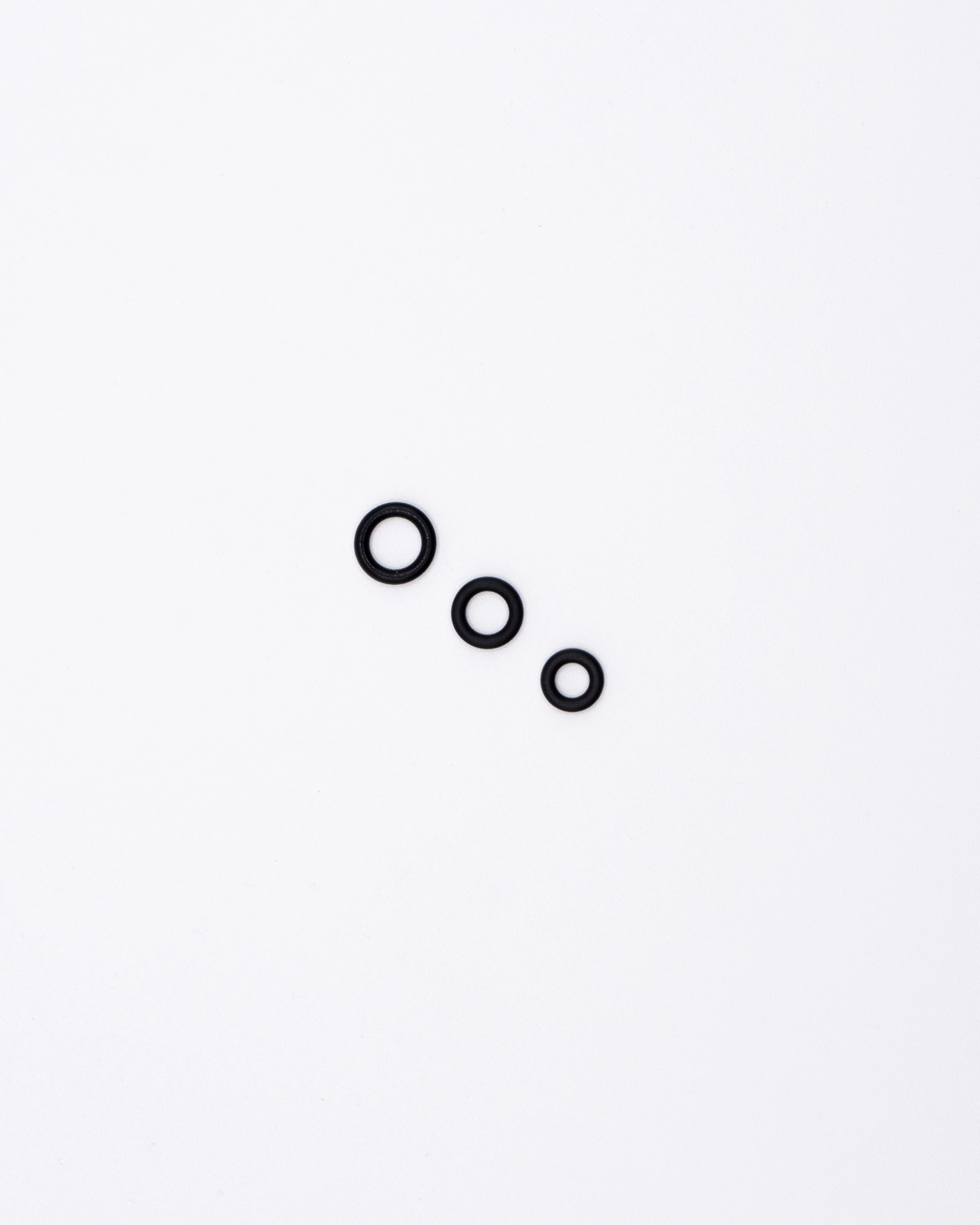

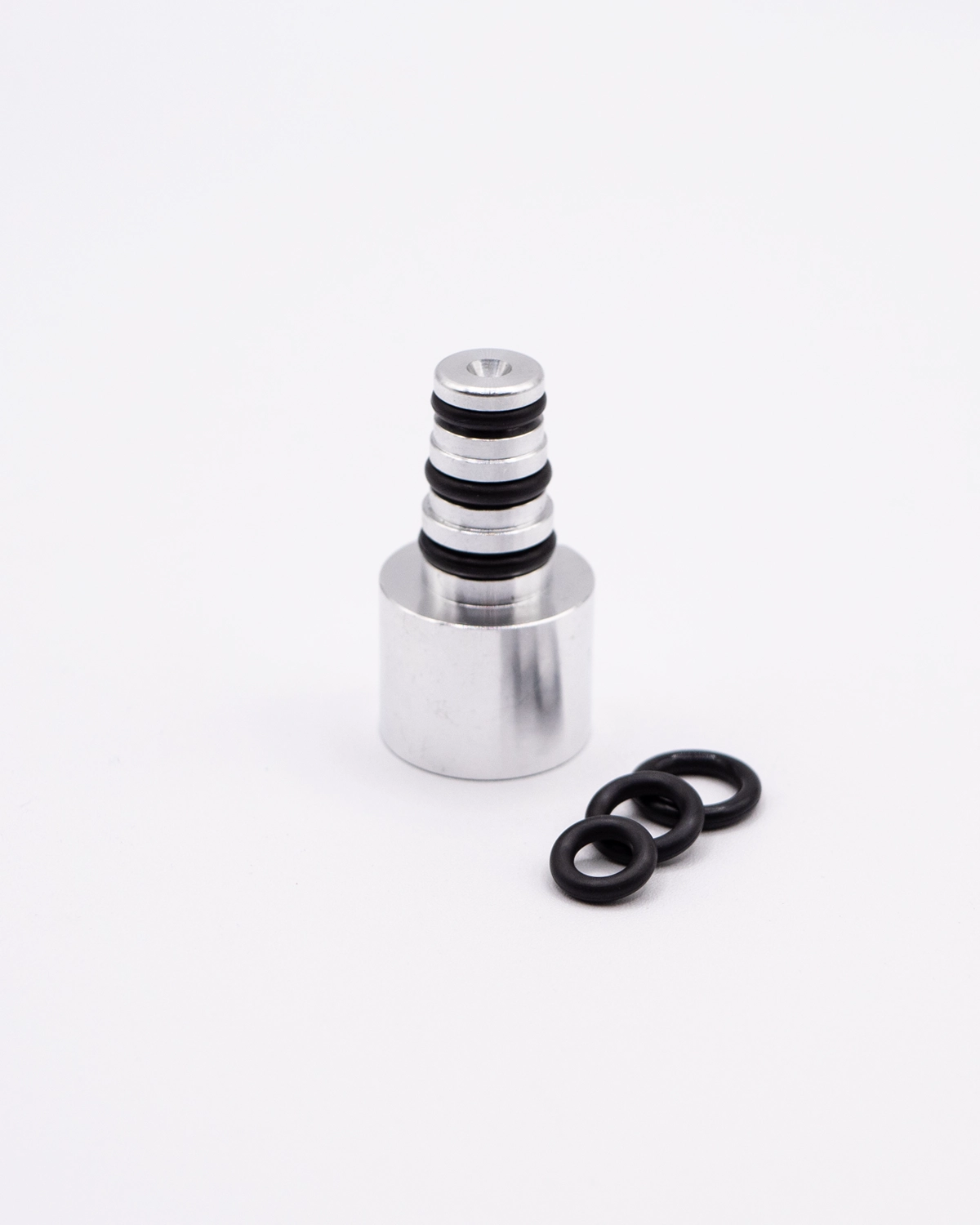

O-Ring Replacement Kit (ORKF000)

FOR FUEL INJECTION:

① Depressurize tool before removing fill cap. Fill with injection cleaner.

② Attached required fuel injection adapter to vehicle and service tool. Disengage vehicle fuel pump.

③ Set tool pressure required for engine. Open service hose valve and start engine. Run all cleaner until engine stops.

④ Remove tool & fuel injection adapter. Re-engage fuel pump.

FOR FUEL INDUCTION:

① Depressurize tool before removing fill cap. Fill with injection cleaner.

② Attach “S” Tool or Flex Nozzle Tool for induction service.

③ Close service hose valve and set tool pressure to 60 psi.

④ Install “S” tool in fresh air tube at throttle plate, or set Flex Nozzle Tool from throttle plate with fresh air tube removed (disconnect MAF sensor).

⑤ Run service on warm engine at 1200 RPM. Blow out 3-4 times during service to strip soot/carbon and clear induction system.

⑥ After service, run 10 min. then drive briskly to clear induction system.

⑦ Reconnect MAF sensor and clear any engine codes.
