Ford 2-Tab Brake Adapter (Ring Style) (BA02R)

$71.50

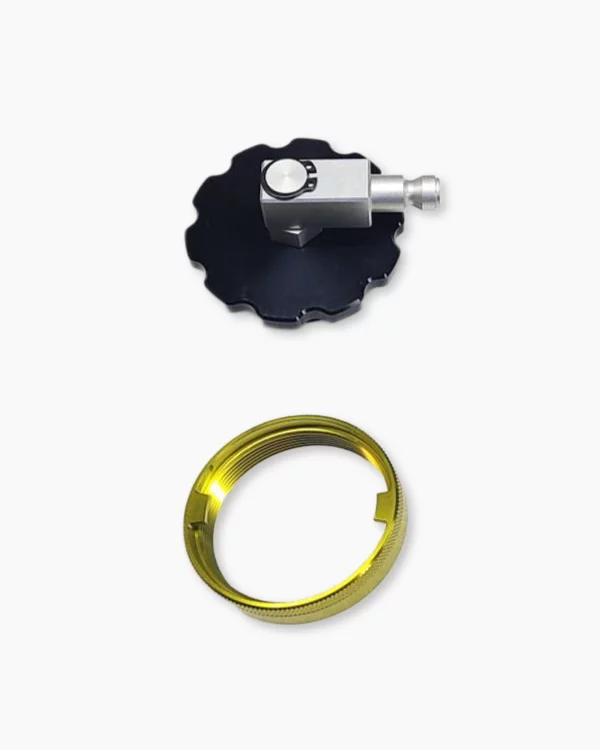

The BA02R is color coded yellow to identify it as a Ford brake adatper.  The “ring” style design attaches to the brake fluid reservoir in place of the reservoir cap.  The serrated center core rotated to snuggly press the flat gasket in the core onto the top of the reservoir neck creating a pressure tight seal. The BA5KR adapter kit includes only one center core to be used with (3) rings.

Adapter part for:
Brake Service Tool (BST32 and BST64)
Other brake service machines using the “Tru-Flate” style connector

This “ring” style adapter is sold as a set (center core and ring)

SKU: BA02R Category: Tags: ,
SKU: BA02R Category: Tags: ,

Brake Tool (BST32)

Brake Tool (BST64)

Features of Ford 2-Tab Brake Adapter (Ring Style) (BA02R):

Brake Adapter Kit – 5 Adapters (3-rings & one ring style core, plus BA01 and BA05) includes this brake adapter in addition to other two ring style and BA01 and BA05 probe style. This kit provides an economical kit for most GM, Ford, and Chrysler vehicles.

OTHER RECOMMENDATIONS: Brake Adapter Kit – 8 Adapters (Probe Style)

Additional information

Weight 0.35 lbs

Brake Bleeder Adapter Application Chart

*All adapters in chart can be purchase as a kit – Brake Adapter Kit – 8 Adapters (Probe Style) (BAK8)
**BA02R, BA03R & BA04R apply to same vehicles as the BA02, BA03 & BA04 adapters. R series can be purchased as a kit – Brake Adapter Kit – 5 Adapters Domestic (Ring Style) (BAK5R)

MANUFACTURER
ADAPTERS REQUIRED*
TOP & BOTTOM VIEW
Audi

BMW/Mini

GM/Chevrolet/Cadillac/GMC/Buick/Pontiac

Chrysler/Dodge/Ram/Jeep

Daewoo

Ferrari

Fiat

Ford

Honda

Hyundai

Jaguar

Kia

Lamborghini

Land Rover

Lexus

Maserati

Mazda

Mercedes-Benz

Mitsubishi

Nissan

Porsche

Renault

Rover

Saab

Subaru

Suzuki

Toyota

Volvo

Volkswagen
Service Instructions

FOR BRAKE SERVICE:

BRAKE ADAPTER OPERATION FOR BRAKE FLUID SERVICE:

① Remove the existing brake reservoir cap.

② Identify the correct adapter for the brand of vehicle being serviced.

③ Install the correct color coded ring on the ring adapter core and install the adapter on the brake fluid reservoir neck.  Install the serrated core on the reservoir neck to seal the flat gasket against the top of the brake reservoir neck, rotate snuggly to create a pressure tight seal on the reservoir neck.

④ If the brake service tool or machine can not easily be connected to the brake adapter swivel connector, consider using either the brake adapter swivel hose (BASH) or brake adapter 2″ extension (BA2X) to position the connector in a more accessable location.

⑤ Connect the brake service tool or machine to the brake adpater and open the valve to check for leaks.

⑥ Refer to instructions for the brake service tool/machine to perform the brake fluid exchange service.  Use manufacturer’s recommended brake bleed sequence.

⑦ Test brakes when complete…..before moving vehicle.
