Additional information
Weight | 3.9 lbs |
---|
JOB AIDS
Service Instructions
FOR DIESEL INDUCTION & EGR SERVICE:
(must use specific engine job aids for all details):
① Remove the tool fill cap and fill tool with water-based cleaner.
② Install the exhaust and intake adapters.
③ Attach the adapters to the Affinity EG service manifold and connect the manifold to the Affinity EG Diesel Induction & EGR Service Tool.
④ Start the engine and bring to normal operating temperature.
⑤ Set tool pressure to 50-60 psi & open the Exhaust valve to run 32 oz of cleaner through the exhaust system.
⑥ Rotate the manifold valve to the exhaust setting and increase engine to 1500 RPM. Run the remaining 32 oz through the induction system.
⑦ Run the engine 10 minutes after the cleaner is consumed and remove adapters. Drive vehicle to clear/remove any loosened soot.
⑧ Run DPF regeneration cycle if required
ALL
GM
Ford
Dodge
Mercedes
Nissan

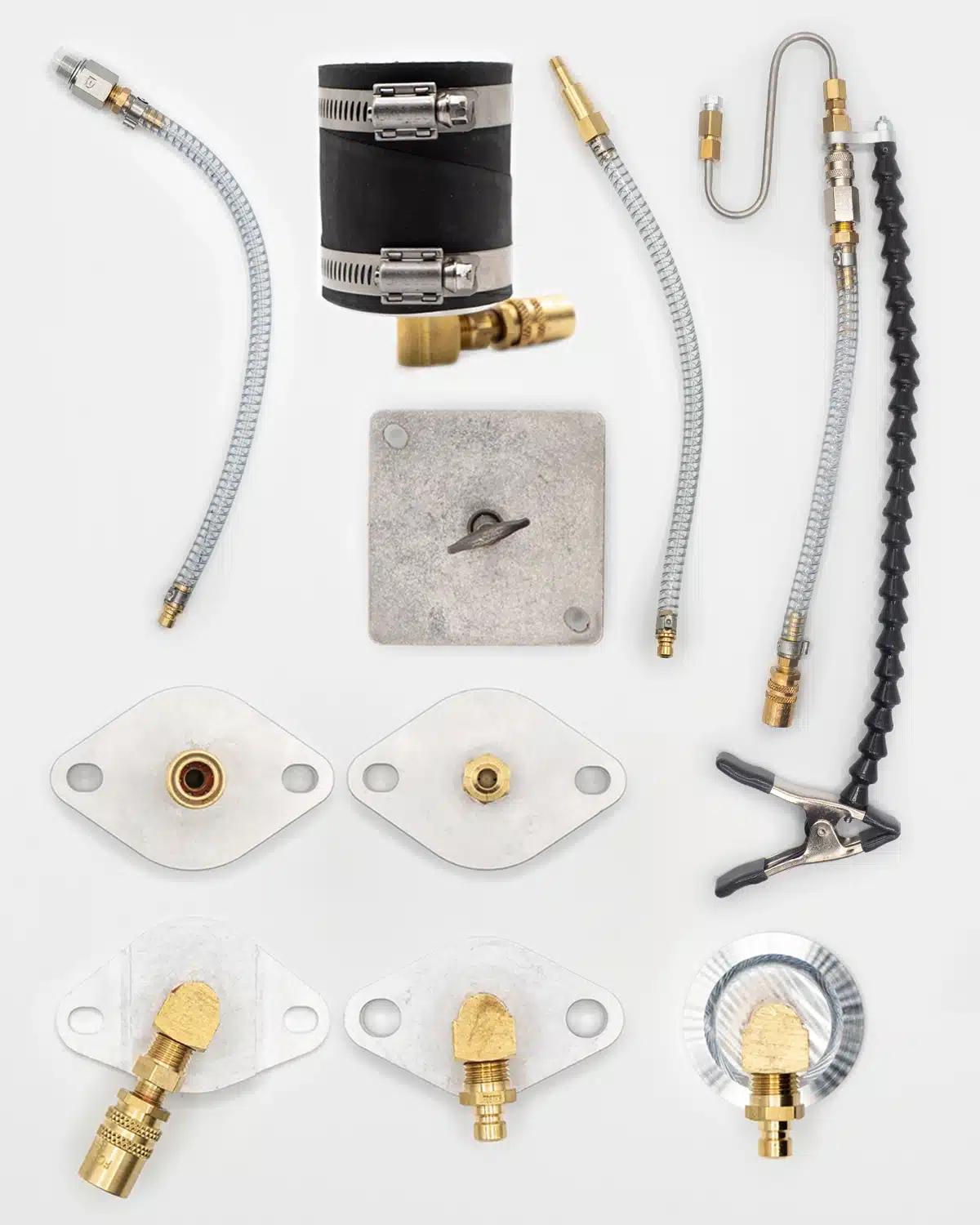

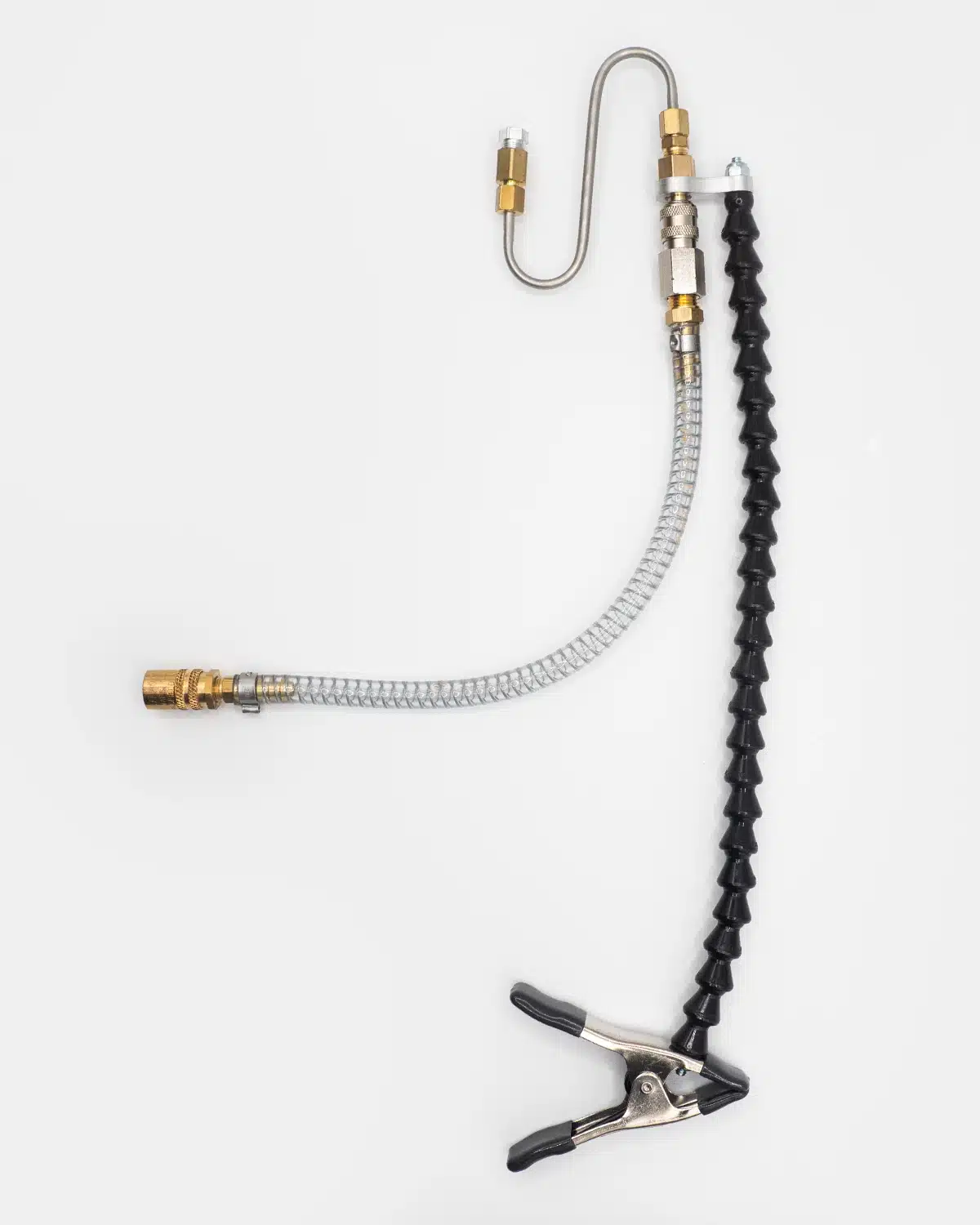

EGR Manifold Assembly
(ZW21001)
GM 6.6L Duramax (LMM) Exhaust Adapter
(ZW21006)
GM 6.6L Duramax (LML) Exhaust Adapter
(AS21012)
GM 6.6L Duramax (L5P) Block-Off Plate
(AS21013)
Chevrolet Cruze 1.6L Intake Adapter
(AS21018)
Dodge 6.7L Cummins Intake Adapter
(ZW21008)
Dodge Eco Diesel 3.0L Intake Adapter
(AS21014)
Chevrolet Cruze 1.6L Exhaust Adapter
(AS21019)
Dodge 6.7L Cummins Manual Opener
(ZW21010)
Dodge 3.0L Eco Diesel Exhaust Adapter
(AS21015)
